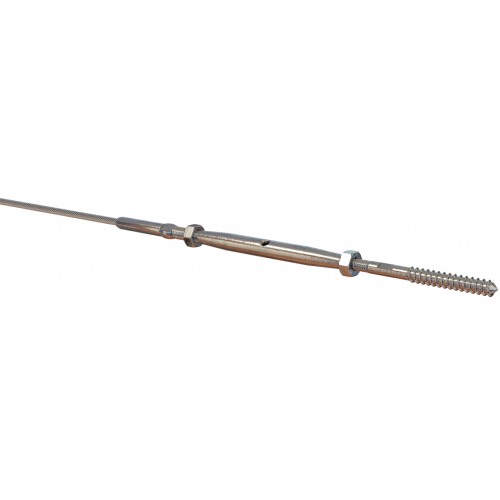

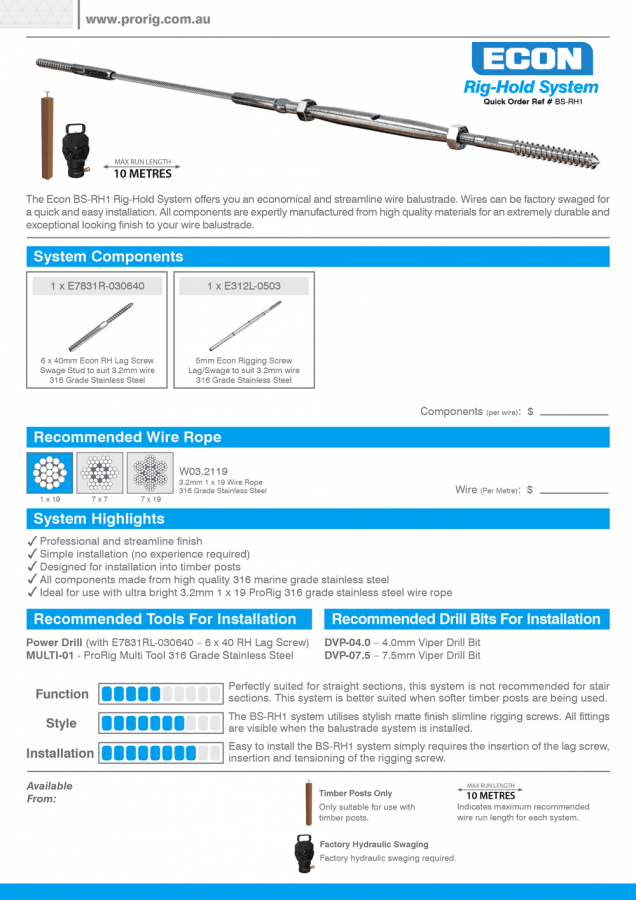

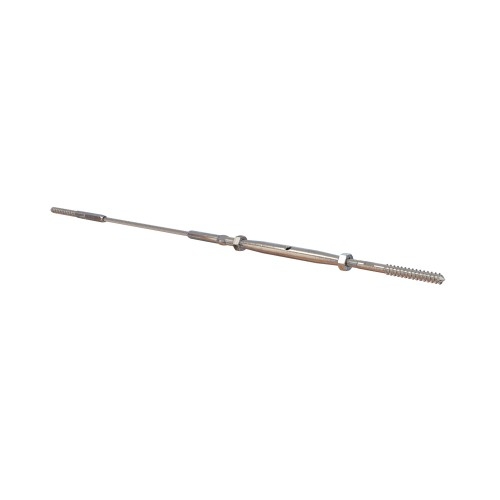

Metal Hardware Supplies - Econ Rig-Hold Wire Balustrade System (Excludes Wire Rope)
FAQ about this system:

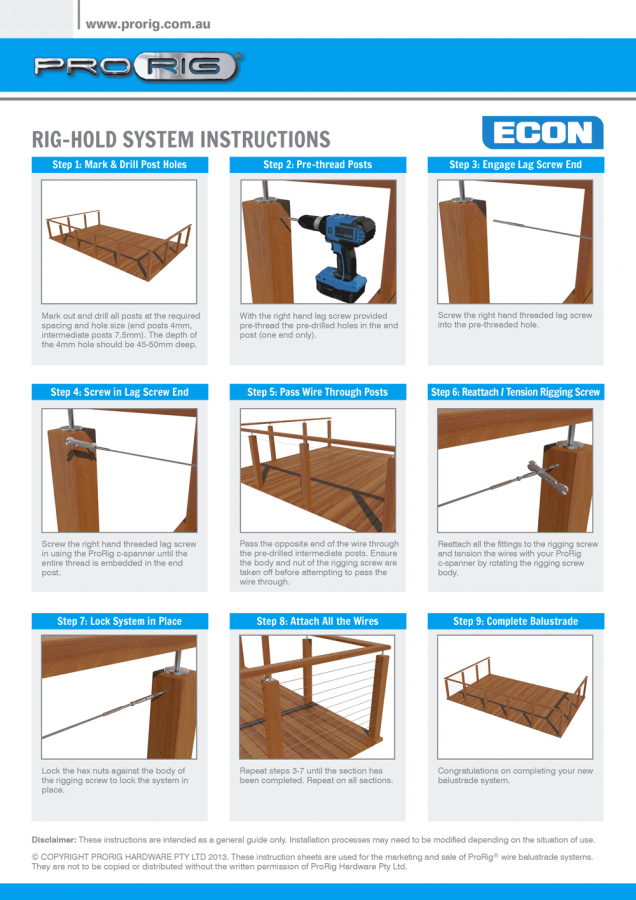

Can I install this system myself? Yes, even someone with no experience can easily install all our wire balustrade systems. We even have simple step by step instructions available to view or download, click on the instructions tab for details.
Do I need any special tools?

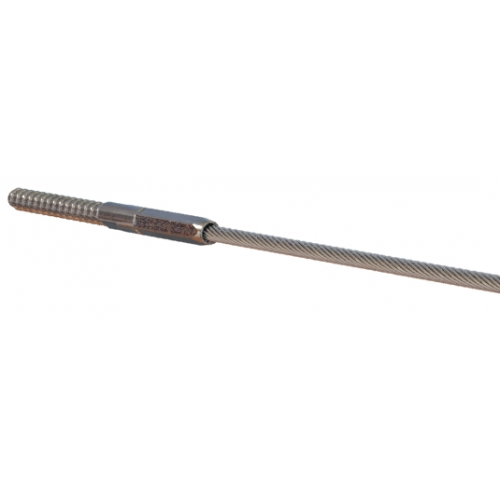

Purchasing Factory Swaged Wires: If purchasing the Econ Rig-Hold System factory swaged; your wires will arrive to your door manufactured to your exact lengths. You will only require common handyman tools such as an electric drill, drill bits etc to install. We also recommend the use of a ProRig Multi Tool and extra RHT Lag Screw for easier installation.
Purchasing Components Only: If purchasing the Econ Rig-Hold System components only; you will require a hydraulic press (in addition to common handyman tools) to correctly swage the components to the wire. Contact your local supplier for details on this. We also recommend the use of a ProRig Multi Tool and extra RHT Lag Srew for easier installation.

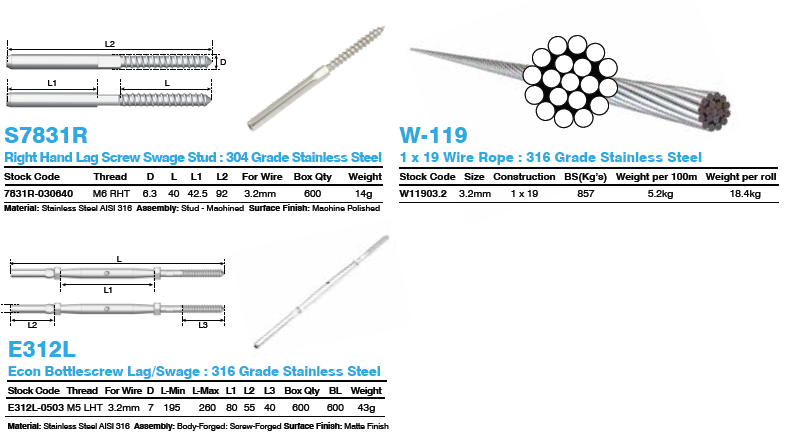

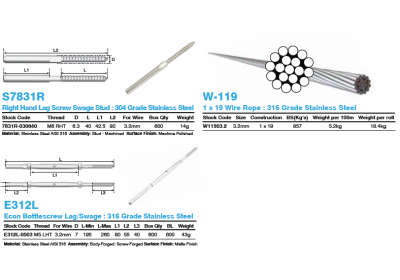

What size and type of stainless steel wire do I use? This method is recommended for use with 3.2mm 1 x 19 - 316 grade stainless steel wire rope. This wire is the most functional for stainless steel wire balustrade systems due to its bright surface finish, attractive appearance, durability, strength and low stretch. To ensure a high quality finish to your balustrade we recommended the use of ultra high quality ProRig Wire Rope.
What spacing do I need between my wires? When using 3.2mm 1 x 19 stainless steel wire, you will usually need 80mm spacing (usually 11 runs) between your wires when using a standard one (1) meter high handrail (960mm to the underside) with 1200-1500mm post spacing. This is only a general guide, please visit our regulations section for detailed information on the current NCC Regulations.
Can I use this balustrade system on a stair or angled section? Yes, the Econ Rig-Hold System can be used on a stair or angled sections, howver the Lag Screws will need to be inserted on an angle.
What size pilot hole should I drill for my Lag Screws? You will require a 4mm hole to a depth of approximately 40mm.
What is the maximum length run I can do? The Econ Rig-Hold System can easily span up to 10 meters. Rigging Screws can be used on either end to achieve longer runs. Please contact your supplier for further information prior to ordering.
What size hole should I drill through my intermediate posts? A 7.5mm hole through your intermediate posts will allow the swage stud (of the rigging screw) to pass through. Please note: If you are using grommets, the required drill size is 11/32" at a depth of at least 10mm from each side.
Can I take my balustrade wire around corners? This system is not suitable for bending around corners.
Can I use this system if I have timber posts? Yes.
Can I use this system if I have metal posts? No, however the ProRig BS-FF1 Flexi-Fit System with some minor component changes to suit metal posts will give your balustrade a similar look.
